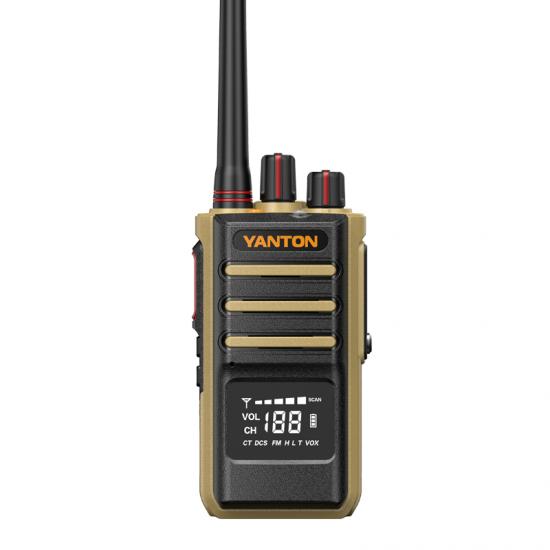

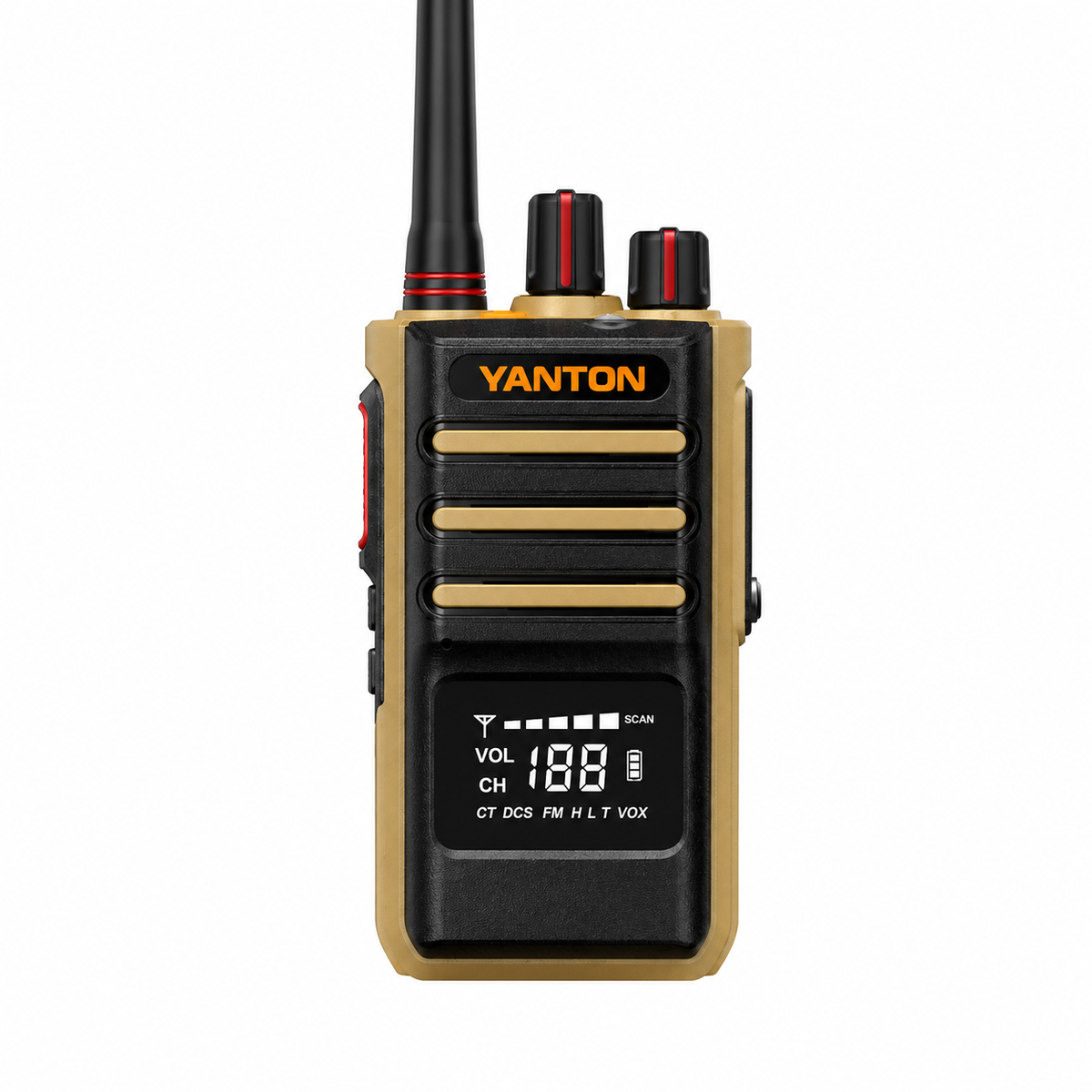

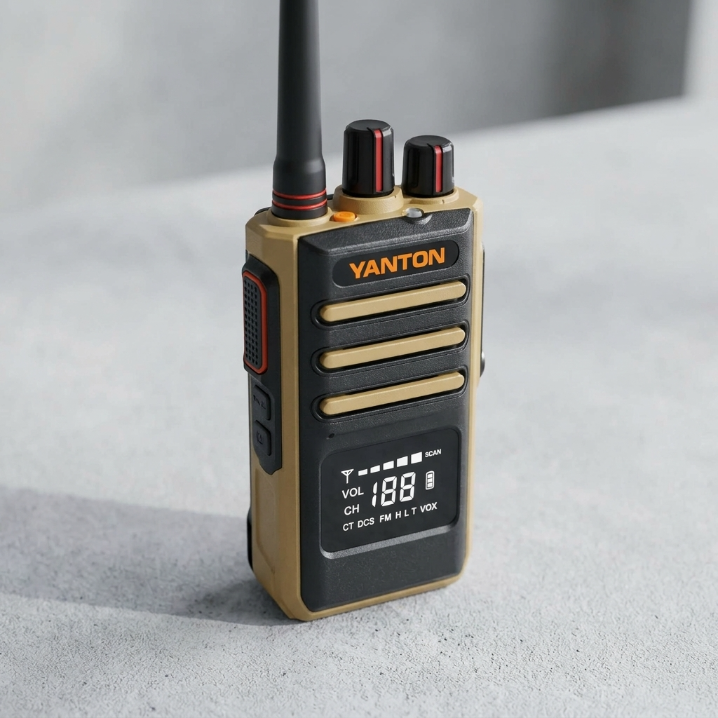

T-800D IP67 Waterproof 5W Dual Band Walkie Talkie – 199 Channel Long Range Two-Way Radio

The T-800D is a rugged, high-performance dual-band walkie talkie designed for professionals who need reliable communication in challenging environments. Featuring VHF/UHF dual-band operation, 5W transmission power, IP67 waterproof protection, and 199 programmable channels, the T-800D delivers exceptional communication performance for security personnel, construction teams, industrial operations, event management, and outdoor adventures.

Built with a durable body and hidden display design, the T-800D combines modern styling with advanced communication features including VOX hands-free operation, emergency alarms, scrambler technology, recording capability, and professional signaling options. Its high-gain antenna and powerful transmitter ensure extended communication range, while the IP67 waterproof rating provides dependable operation in rain, dust, and harsh outdoor conditions.

Whether you're coordinating teams on a construction site, managing security operations, or exploring the outdoors, the T-800D offers dependable communication when it matters most.

Key Features

• IP67 Waterproof & Dustproof Protection
• Dual Band VHF/UHF Operation
• Frequency Range: 136-174MHz & 400-480MHz
• 199 Programmable Memory Channels
• Powerful 5W RF Output
• Hidden Display Design
• High Gain Antenna
• VOX Hands-Free Communication
• Recording Function
• CTCSS/DCS Encode & Decode
• Individual, Group & All Call Functions
• PTT ID & ANI Support
• 2-Tone & 5-Tone Signaling
• Remote Kill, Stun, Activate & Revive
• Built-In Scrambler Function
• Audio Compander Technology
• Emergency Alarm
• Busy Channel Lockout (BCL)
• Time-Out Timer (TOT)
• Programmable Side Keys
• Adjustable Squelch Levels
• Wide/Narrow Band Selection
• Optional Vibration Alert
• Optional Noise Cancellation

Rugged IP67 Waterproof Design

Designed for demanding environments, the T-800D features IP67-rated waterproof and dustproof protection, allowing reliable operation in rain, dusty workplaces, and outdoor conditions where ordinary radios may fail.

Advanced Communication Features

The T-800D includes professional-grade signaling and communication functions such as individual calling, group calling, all-call broadcasting, PTT ID, ANI identification, and remote radio management functions for enhanced operational control.

Technical Specifications

General Specifications

• Model: T-800D
• Frequency Range:
  • VHF: 136-174 MHz
  • UHF: 400-480 MHz
• Channel Capacity: 199 Channels
• Frequency Stability: ±2.5ppm
• Operating Voltage: DC 7.4V
• Antenna Impedance: 50Ω
• Operating Mode:
  • Same Frequency Simplex
  • Different Frequency Simplex
• Dimensions: 116 × 61 × 38 mm

Battery & Power

• Battery Capacity:
  • 1500mAh Li-ion (Type-C Version)
  • 2000mAh Li-ion (Optional)
• Charging Options:
  • Desktop Charger
  • USB Type-C Charging

Transmitter Specifications

• RF Output Power: 5W / 1W
• Modulation Type: F3E
• Maximum Frequency Deviation: ≤5KHz
• Spurious Radiation: ≤60dB
• Transmitting Current: ≤1000mA

Receiver Specifications

• Sensitivity: <0.20μV (12dB SINAD)
• Squelch Sensitivity: <0.20μV
• Intermodulation Rejection: 50dB
• Audio Output Power: 500mW
• Receiving Current: ≤100mA
• Standby Current: 20mA

Package Includes

• 1 × T-800D Dual Band Walkie Talkie
• 1 × Rechargeable Li-ion Battery
• 1 × High Gain Antenna
• 1 × Belt Clip
• 1 × Charger
• 1 × User Manual

Ideal For

• Security Personnel
• Construction Sites
• Industrial Facilities
• Event Management Teams
• Warehouses & Logistics
• Emergency Response Teams
• Outdoor Adventures
• Hiking & Camping
• Property Management
• Professional Team Communication

The T-800D IP67 Waterproof Walkie Talkie combines rugged durability, advanced communication capabilities, and long-range performance, making it an ideal communication solution for professionals working in demanding environments.
