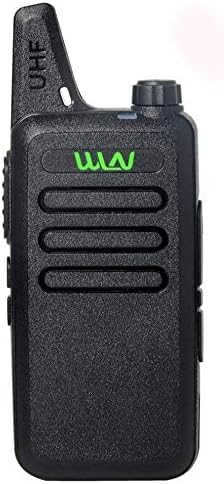

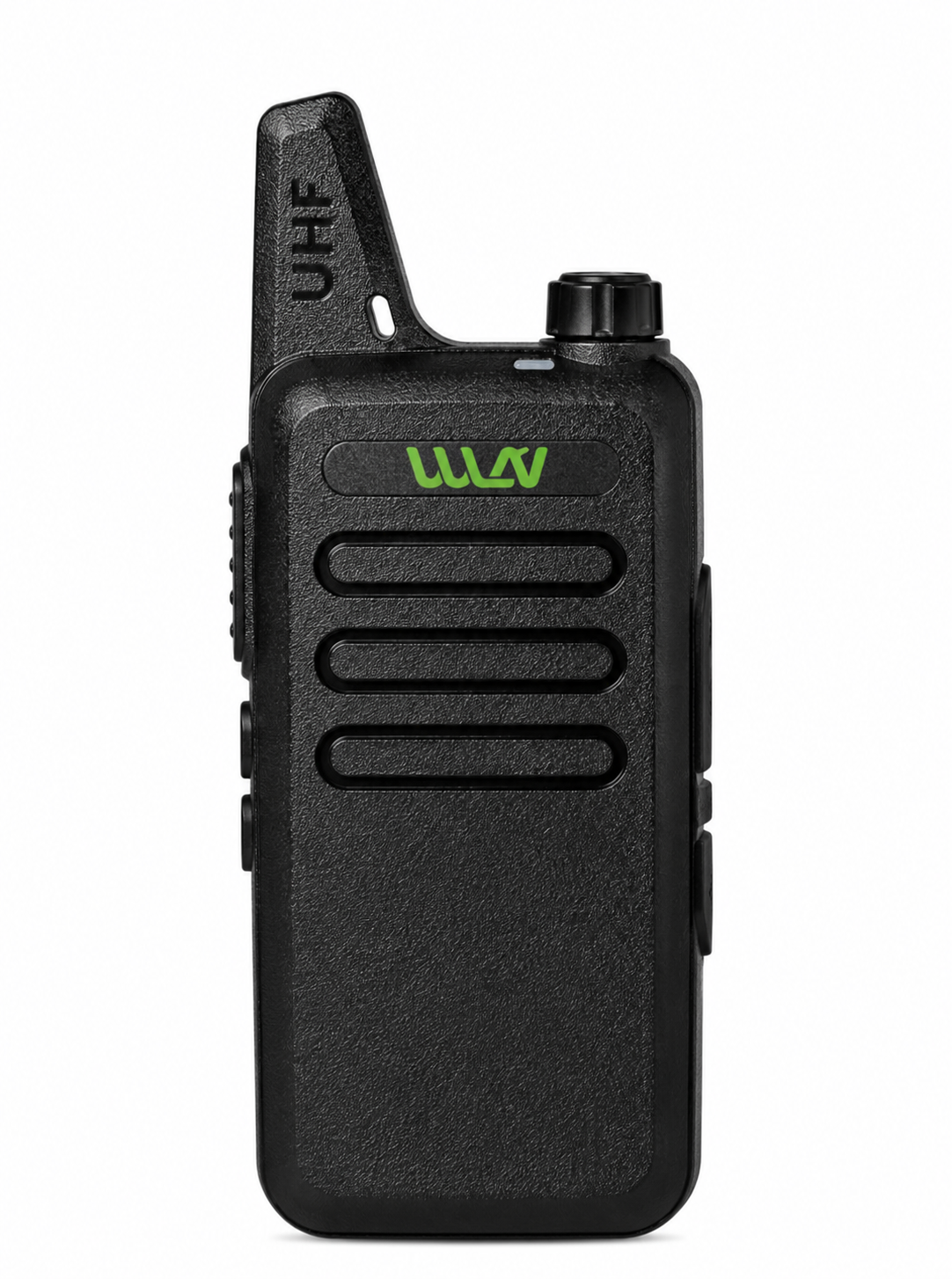

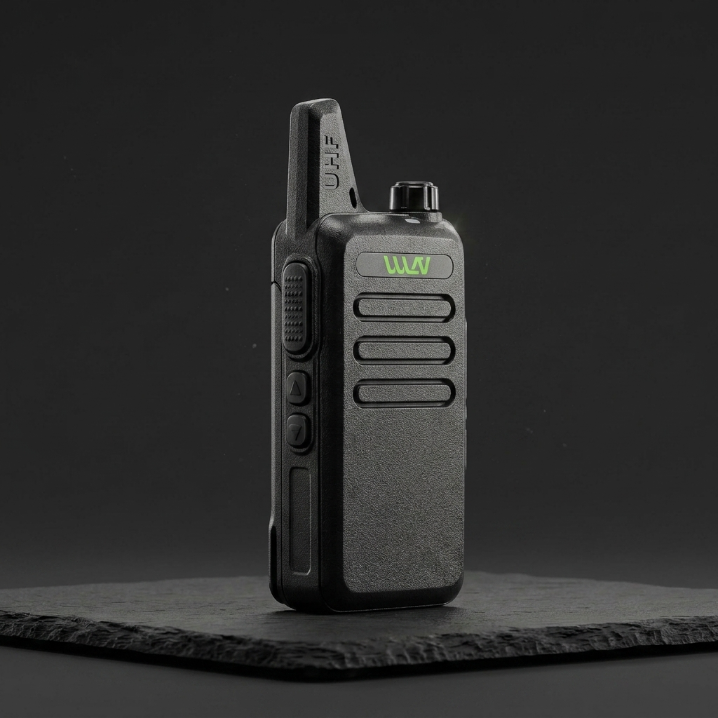

WLN KD-C1 Mini Walkie Talkie (1 Pair) – Compact 5W UHF Two-Way Radio

The WLN KD-C1 Mini Walkie Talkie is a compact yet powerful communication solution designed for businesses, security teams, outdoor enthusiasts, and everyday users. Operating on the UHF 400-470MHz frequency range with up to 5W transmission power, this lightweight handheld radio delivers reliable long-range communication while maintaining a portable and easy-to-carry design.

Featuring 16 programmable channels, VOX hands-free operation, emergency alarm functionality, voice prompts, and PC programming support, the KD-C1 offers professional-grade communication in a pocket-sized device. Its 1500mAh rechargeable battery provides dependable performance throughout the workday, making it ideal for retail stores, warehouses, hotels, construction sites, events, and outdoor activities.

With a communication range of up to 6 kilometers in open areas, the WLN KD-C1 combines convenience, durability, and performance for seamless team coordination.

Key Features

• UHF Frequency Range: 400-470MHz
• Up to 5W Output Power
• 16 Programmable Channels
• Compact & Lightweight Design
• VOX Hands-Free Function
• Voice Prompt System
• Emergency Alarm
• PC Programmable
• Intelligent Charging Technology
• Battery Saving Function
• Low Battery Alert
• Time-Out Timer (TOT)
• 50 CTCSS / 105 CDCSS Privacy Codes
• Clear Audio Quality
• Long Communication Range

Technical Specifications

General Specifications

• Model: WLN KD-C1
• Frequency Range: UHF 400-470MHz
• Channel Capacity: 16 Channels
• Channel Spacing: 25KHz
• Operating Voltage: 3.7V
• Battery Capacity: 1500mAh Li-ion Battery
• Battery Life: Up to 8 Hours
• Frequency Stability: ±2.5ppm
• Antenna Impedance: 50Ω
• Operating Temperature: -30°C to +60°C
• Communication Range: Up to 6 KM (Open Area)

Transmitter Specifications

• RF Output Power: Up to 5W
• Modulation Type: F3E
• Spurious Emission: ≤65dB
• Audio Distortion: ≤5%
• Transmitting Current: ≤1.3A

Receiver Specifications

• Sensitivity (12dB SINAD): ≤0.20μV
• Selectivity: 55dB / 50dB
• Intermodulation: ≥65dB
• Adjacent Channel Selectivity: ≥60dB
• Audio Output Power: 1000mW
• Standby Current: Approximately 15mA

Physical Specifications

• Dimensions: 110 × 50 × 32 mm
• Weight: 125g (Including Battery & Antenna)

Package Includes

1 Pair Package

• 2 × WLN KD-C1 Mini Walkie Talkies
• 2 × 1500mAh Li-ion Batteries
• 2 × Belt Clips
• 2 × User Manuals
• 2 × AC Adapters / Chargers

Ideal For

• Security Personnel
• Retail Stores
• Warehouses & Logistics
• Hotels & Hospitality
• Event Management
• Construction Sites
• Schools & Educational Institutions
• Outdoor Activities
• Hiking & Camping
• Team Communication

The WLN KD-C1 Mini Walkie Talkie offers the perfect balance of portability, power, and reliability, making it an excellent choice for professional and personal communication needs.
